首頁 » 產品中心 » 中效過濾系列 » XRSBM 化纖袋式過濾器Synthetic Pocket Filter

中效過濾系列

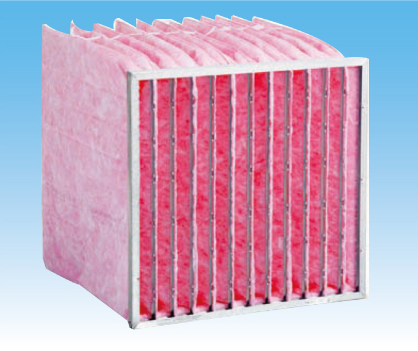

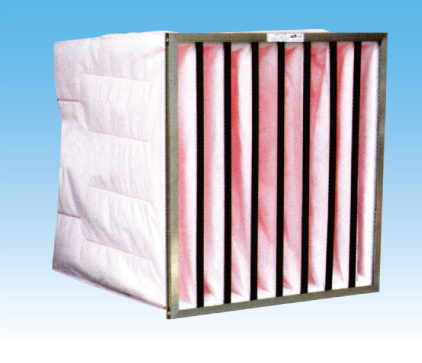

XRSBM 化纖袋式過濾器Synthetic Pocket Filter


性能特點 Features
?性價比高
?高集塵能力

外框:鍍鋅框,鋁框,或不銹鋼外框,可選厚度 21mm,25mm,46mm。
濾料:聚脂合成纖維濾料;高容塵量,低阻力;超聲波無縫密合。
效率:(EN779:2002)G4,F5,F(xiàn)6,F7,F8,F9;
            (ASHRAE 52.2:2007)MERV8, MERV10, MERV12, MERV13,
               MERV14, MERV15。
建議終壓損:450Pa。
使用溫度:常溫。


?Excellent price performance ratio
?High dust holding capacity

Frame:Galvanized frame, aluminum frame, stainless steel frame, Frame can choose 21mm,25mm,46mm.
Media: high performance synthetic fiber;high dust-holding capacity, low initial resistance;pockets are made from leak free ultra sonic machine.
Efficiency:(EN779:2002)G4,F5,F6,F7,F8,F9;
           (ASHRAE 52.2:2007) MERV8, MERV10, MERV12, MERV13,  MERV14, MERV15.
Recommended final pressure drop:450Pa.


應用Applications
用于電子,生物制藥,機械儀表,石化輕工等空氣凈化系統
作為HEPA的前道保護段過濾器
Suitable for the electronics, bio-pharmaceutical, machinery,instrumentation, petrochemical and light industry etc general airpurification systems.
As pre filters for hepa filters

獨特的合成口袋過濾器,它可以用來作為預濾器或終端過濾器。由于其高集塵能力和堅固的口袋設計,它特別適用于艱難的運營條件,包括變風量系統、換流系統和風機反復開關。
當用作預濾器,它能阻止高效過濾器不必要的塵埃加載,延長其使用壽命。因此,終端過濾的頻率需要改變的是空氣處理系統成本效益增減。
Unique synthetic pocket filter which can be used as a prefilter or as a final filter.Due to its high dust holding capacity and robust pocket design it is particularly suited for difficult operating conditions,including variable air volume,turbulent airflow and repeated fan shutdown.
When used as a prefilter,it protects higher efficiency filters from unnecessary dust loading,prolonging their service life .As a result,the frequency with which final filters need to be changed is reduced-increasing the cost effectiveness of the air handling
system.

常用規格 Common Specifications

型號

實際尺寸

袋數

濾料面積

額定風量

初期壓損

終期壓損

Model

Dimensions

Pocket

Media Air Flow

Rated  Air Flow

Initial Pressure Drop(Pa)

Final Pressure   Drop

W*H*D

W*H*D(mm)

(個)

m2)

(m3/h)

G3

G4

F5

F6

F7

F8

F9

G3-F8

F9

SBM-24*24*25

592*592*635

8

3.3

3400

37

45

55

58

90

95

155

250

310

SBM-20*24*25

490*592*635

6

2.47

2850

37

45

55

58

90

95

155

250

310

SBM-20*20*25

490*490*635

5

1.75

2300

38

47

55

58

90

95

155

250

310

SBM-12*24*25

287*592*635

4

1.65

1700

38

48

55

58

90

95

155

250

310

SBM-24*24*22

592*592*550

8

2.84

3400

40

49

60

65

105

110

165

250

330

SBM-20*24*22



490*592*550

6

2.13

2850

40

49

60

65

105

110

165

250

330

SBM-20*20*22

490*490*550

5

1.15

2300

42

50

60

65

105

110

165

250

330

SBM-12*24*22

287*592*550

4

1.42

1700

42

50

60

65

105

110

165

250

330

SBM-24*24*15

592*592*381

8

1.93

3400

45

58

70

75

125

130

200

250

400

SBM-20*24*15

490*592*381

6

1.45

2850

46

60

70

75

125

130

200

250

400

SBM-20*20*15

490*490*381

5

1.03

2300

46

60

70

75

125

130

200

250

400

SBM-12*24*15

287*592*381

4

0.97

1700

46

60

70

75

125

130

200

250

400

備注:1、性能初阻力公差為±10%  2、可提供特殊尺寸制作0

1、若遇規格、結構變更,以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨

1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
