首頁 » 產品中心 » 預過濾系列 » SGP不織布濾網

預過濾系列

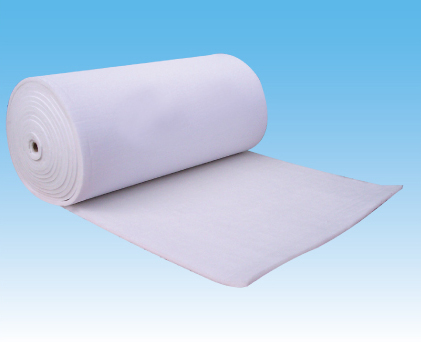

SGP不織布濾網

性能特點 Features
外框:可整卷或裁片供應,亦可加裝鍍鋅框或鋁合金框。
濾料:由抗斷的合成纖維過濾材料組成,遞增結構,容塵量大,效率高,不含硅。
效率:(EN779:2002 filter class)G3,G4,F5
      (ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.

使用溫度:常溫。


◆采用內外熔點高低不同的復合纖維制成,纖維之間的接點牢固、結合緊密、不易脫落
◆不添加任何化學粘劑,使用熱熔纖維將粗細纖維混粘在一起,遇火源不易延燃。
◆可清洗并重復使用
◆可加裝鍍鋅鋼板框或鋁合金框,亦可加裝金屬背網,可有效支撐濾網承受大風量不易變形

Frame:Supply of the entire volume  Or plus galvanized border or aluminum alloy frame.
Media:the filter mats are Made of high performance polyester fibers with durable thermal bonding,Increment structure, large dust capacity,Not silicon
Efficiency:(EN779:2002 filter class)G3,G4,F5
(ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.


◆Using polyester, polyamide, nylon, etc. chemical synthetic fibers, in
accordance with different diameter and density of them, make into a
conformation of the increase in density by non-woven process, it has
a property of high permeability, low initial resistance and high dust
collection rate
◆Using different melting point of exterior and interior of the fiber,
thick and thin fibers was fused together by hot-melt fibers, without
any chemical adhesives
◆The contacts between the fibers are strong. The integration between
the fibers is closer, and the fiber is not easy to shed.
◆Can be washed repeatedly
◆Can be with galvanized steel or aluminum alloy frame and also
expanded metal on the exhaust side, to effectively prevent deformation
of the separator under high-speed airflow

應用 Applications

商用和工業用通風空調系統預過濾
G3,G4初效過濾棉適用于噴漆系統和噴涂車間的前道過濾
Prefilters for commercial&industeial AHU
G3 and G4 are well suited for pre-filtration of intakd air for painting systems and paint-spray booths

常用規格 Common Specifications

  號

Model

SGP-100

SGP-200

SGP-300

SGP-400

SGP-500

規格

 Size

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m

濾料

Material

Polyester

厚度

Thickness

5mm

10mm

15mm

20mm

25mm

風速

Norm Velocity

1.0m/s

初期壓損

Initial Pressure Drop

30Pa

40Pa

45Pa

50Pa

58Pa

終期壓損

Final Pressure Drop

147Pa

196Pa

196Pa

196Pa

196Pa

平均捕塵效率

Average Trapping Efficiency

76%

80%

85%

88%

90%

耐溫度

Heat Resistance

100oC

捕塵量

Capacity of Dust Arrestment

400g/m2

450g/m2

500g/m2

550g/m2

600g/m2


Model

SGP-100

SGP-200

SGP-300

SGP-400

SGP-500



 Size

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m



Material

Polyester



Thickness

5mm

10mm

15mm

20mm

25mm



Norm Velocity

1.0m/s



Initial Pressure Drop

30Pa

40Pa

45Pa

50Pa

58Pa

Final Pressure Drop

147Pa

196Pa

196Pa

196Pa

196Pa

Average Trapping Efficiency

76%

80%

85%

88%

90%

Heat Resistance

100oC



Capacity of Dust Arrestment

400g/m2

450g/m2

500g/m2

550g/m2

600g/m2


1、若遇規格、結構變更,以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨

1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
