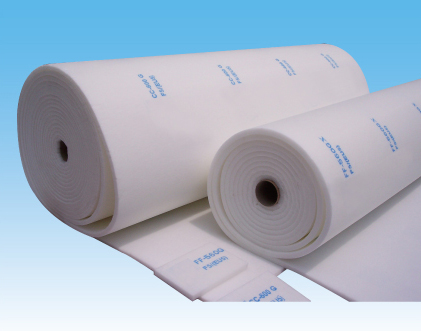

STC 頂棉Ceiling Filter

性能特點Features

外框:可整卷或裁片供應,亦可加裝鍍鋅框或鋁合金框。
濾料:采用內外熔點高低不同的復合纖維制成 ,纖維之間結構牢固,結合緊密,不易脫落。濾棉有全粘性,半粘性,無粘性可供選擇。
效率:(EN779:2002 filter class)G3,G4,F5
            (ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.
使用溫度:常溫。


◆濾料按纖維粗細及密度不同,以非織物方式、多向性、漸層性,軋針法制成
◆漸密式結構可根據塵埃顆粒大小,被阻擋在不同密度的層次,容塵量大
◆一定風速下仍能保持原來形狀,增長濾網的壽命,降低更換成本
◆采用內外熔點高低不同的復合纖維制成,纖維之間接點牢固、結合緊密,不易脫落
◆濾棉有全粘性(立體噴膠處理)、半粘性(表面噴膠處理)、無粘性(無膠)可供選擇
◆可加裝鍍鋅鋼板框或鋁合金框,亦可加裝金屬背網,可有效支撐濾網承受大風量不易變形

Frame:Supply of the entire volume  Or plus galvanized border or aluminum alloy frame.
Media:Using different melting point of exterior and interior of the composite fiber,thick and thin fibers was fused together by hot-melt fibers, Combined with close,is not easy to fall off. There are full-viscous, half viscous, non-viscous to choose from.
Efficiency:(EN779:2002 filter class)G3,G4,F5
                     (ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.


◆Using chemical synthetic fibers, in accordance with different diameter
and density of them, make into a conformation of the increase in density
by non-woven process
◆The structure of gradually increase the density of fibers can block
particles of various sizes at the levels of different density. It has
a large capacity of dust quantity
◆Under higher air velocity the separator will still maintain the
original shape. It has advantages of low cost and long service life
◆Using different melting point of exterior and interior of the fiber,
thick and thin fibers was fused together by hot-melt fibers
◆There are full-viscous (spraying glue with three-dimensional treatment),
semi-viscous (spraying glue with surface treatment) and non-viscous
(no glue) filter to choose from
◆Can be with galvanized steel or aluminum alloy frame and also
expanded metal on the exhaust side, to effectively prevent deformation
of the separator under high-speed airflow

應用Applications
特別為噴漆系統和噴漆車間的后過濾工序而設計的頂棚過濾棉
適用于通風系統及設備的精細過濾
The ceiling filter is especially designed for the final intake air filtration in paint-spray systems and booths
The mats are also suitable in any kind of fine filtration of ventilation systems and units
◆用于涂裝工廠、噴漆房、烤漆房頂部送風系統,收集細小塵埃微粒,防止油漆污染,保證房內空氣高度潔凈,使烤漆房內氣流分布均勻
◆Suitable for the air supply system at top of the spraying-baking booth
in painting factory to safeguard a high degree of cleanliness and
air-distribution uniformity. Trapping small dust particles and preventing
pollution of paint.


常用規格 Common Specifications

過濾級別EN779

Filter class to   EN779

F6EU6

F5EU5)

SZFIL

Type

Units

SAR-660

SAR-350

STC550

STC600

平均效率

Average   efficiency

%

63

56

54

57

額定風量

Nominal air   volume

m3/h

900

1800

900

900

初期壓損

Initial pressure   drop

Pa

25

35

25

25

推薦終期壓損

Recommend.final   pressure drop

Pa

450

450

450

450

容塵量

Dust holding   capacity

g

369

260

329

330

厚度

Thickness

mm

25

20

25

25

重量

Weight

g/m2

550

500

500

600

Rolls

L*W m

2×20,1.6×20

2×20,1.6×20

2×20,1.6×20

2×20,1.6×20

Filter class to EN779


F6EU6

F5EU5)

SZFIL

Type

Units

SAR-660

SAR-350

STC550

STC600







Average efficiency

%

63

56

54

57

Nominal air volume

m3/h

900

1800

900

900

Initial pressure drop

Pa

25

35

25

25

Recommend.final pressure drop

Pa

450

450

450

450

Dust holding capacity

g

369

260

329

330

Thickness

mm

25

20

25

25

Weight

g/m2

550

500

500

600

Rolls

L*W m

2×20,1.6×20

2×20,1.6×20

2×20,1.6×20

2×20,1.6×20

1、若遇規格、結構變更,以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨

1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
